WT-30 Automatic Double Wall Paper Cup/Bowl Sleeve Machine
   ¡¾Previous¡¿ ¡¾Next¡¿

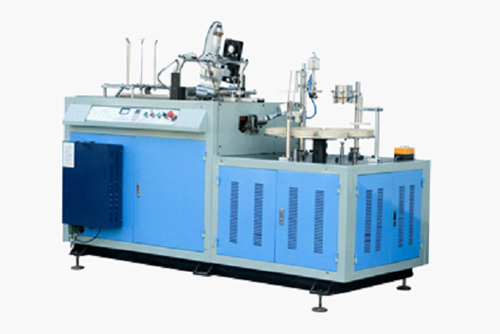

Product Name: WT-30 Automatic Double Wall Paper Cup/Bowl Sleeve Machine
Product Model: WT-30
Click Times: 4563 Times
Information:

WT-30 Automatic Double Wall Paper Cup/Bowl Sleeve Machine Description:

Model WT-30 Paper Cup/Bowl Sleeve Forming & Wrapping Machine is an automatic equipment to make a second-wall sleeve over the inner-cup/bowl (cup/bowl finished by paper cup/bowl machine), wear a sleeve around the paper cup/bowl.

It is the matching equipment of (ZB-A12) Paper Cup Machine & (ZW-A35) Paper bowl machine, which has the function as photocell detection, failure alarm, counting etc.

It makes double wall paper cup/bowl after running a whole procedure of automatic paper (fan-sleeve) feeding, sleeve-cone-body sealing (by ultrasonic wave), water-glue spraying (spray glue inside the cone-sleeve), cup/bowl feeding (absorb cup into the cone-sleeve), inserting and bonding sleeve to the cup, collecting with the function of photo electric detection, fault alarm, and count.

It is an ideal equipment of making two/double walls paper cups/bowls such as direct-sleeve cups, hollow-sleeve cups, rippled/corrugated-sleeve paper cups etc. The sleeve-wrapped paper cups are popular for hot drinks (tea, coffee etc).

This is our latest double wall cup forming machine, speed can up to 60pcs/min, best choice for hard coffee paper cup.

It can reduce the production costs as it can use duplex board for the sleeve.



WT-30 Automatic Paper Cup/Bowl Sleeve Machine Technical Specification:

Paper Cup Size: 6-16oz cup/20-50oz bowl (mold exchangeable);

Raw Material: PE paper, Varnishing Printed paper, or other film coated paper (can be sealed by ultrasonic);

Suitable paper weight: 170-350gsm (Recommend 250-300gsm);

Rated Productivity: 40-50 paces/minute;

Power Source: 220V 50Hz /380V 50Hz or other required;

Total Power: 4KW;

Total Weight: 1000KG;

Package Size (L x W x H): 2200 x1100 x1600mm;

Technical Specification:

Model

WT-30 Automatic Double wall Paper Cup/Bowl Sleeve Machine

Paper Cup Size

6-16oz cup/20-50oz bowl (mold exchangeable);

Raw Material

PE paper, Varnishing Printed paper, or other film coated paper (can be sealed by ultrasonic);

Suitable paper weight

170-350gsm (Recommend 250-300gsm);

Rated Productivity

40-50 paces/minute;

Power Source

220V 50Hz /380V 50Hz or other required

Total Power

4KW;

Total Weight

1000KG;

Package Size

(L x W x H)

2300 x1250 x1800mm;



$8500,00

Dear Christopher Williams:

        Thank you for vist our company website.

         This is leon. i am from Kangqi machine factory. The WT-30 Automatic Paper Cup/Bowl Sleeve Machine minimum order is one machine. may i ask some question about the quotation.

        What kind of price you want

Model

WT-30 double wall paper cup sleeve machine

Paper Cup Size

6oz-16oz /20-50oz bowl (mold exchangeable);

Raw Material

PE paper, Varnishing Printed paper, or other film coated paper (can be sealed by ultrasonic);

Suitable paper weight

170-350gsm (Recommend 250-300gsm);

Rated Productivity

40-50 paces/minute;

Power Source

220V/380V 50Hz or other required

Total Power

4KW

Total Weight

1000KG

Package Size

2300 x1250 x1800mm;

(L x W x H)

Working Air Source

0.4Mpa, Air Out-put:0.6 m3/minute
