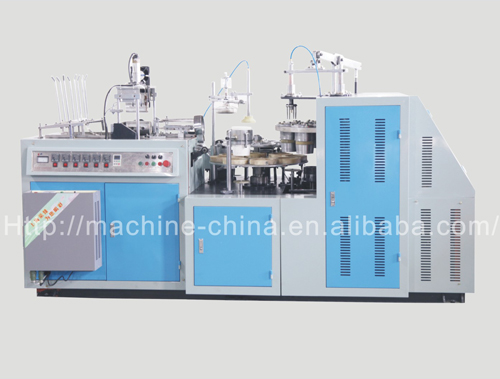

Information: ZW-A35 Automatic Ultrasonic Double PE Paper Bowl Machine Description:
Model ZW-A35 Ultrasonic Two-PE Paper Bowl Forming Machine is an automatic machine with multi-working station, which has the function of photocell detection, failure alarm, counter and the advantages of humanism design, safer operation and easier maintenance.
It makes both one-side-PE-film-coated and two-side PE-film-coated paper bowls after running a whole procedure of automatic pre-printed-fan-shape-paper feeding, two-step pre-heating, bowl-side-body sealing(ultrasonic wave), silicone-oil lubricating(for top curling), bottom punching, two-step bottom heating, bottom pre-folding, bottom knurling, top curling and bowl discharging.
It is an ideal equipment of making soup paper bowls, noodle bowls, bigger paper cups and other large food cone-shaping containers etc.
Technical Specification: |
Model |
ZW-A35 Automatic Ultrasonic Double PE Paper Bowl Machine |
Paper Cup Size |
16oz-35oz (mold exchangeable); |
Raw Material |
One-side or two side PE (polyethylene) film coated / laminated paper; |
Suitable paper weight |
170-300gsm; |
Rated Productivity |
35-40 pcs/ minute; |
Power Source |
380V 50Hz or other required |
Total Power |
6KW |
Total Weight |
2500KG |
Package Size
(L x W x H) |
3000 x1200 x1600mm
|
Air Source |
0.6Mpa, Air Out-put:0.6 m3/minute; |
Making Double PE coated paper cups, need to buy an air compressor |
|
