BJ-A22 AUTOMATIC Ultrasonic Double PE Paper Cup Machine
   ¡¾Previous¡¿ ¡¾Next¡¿

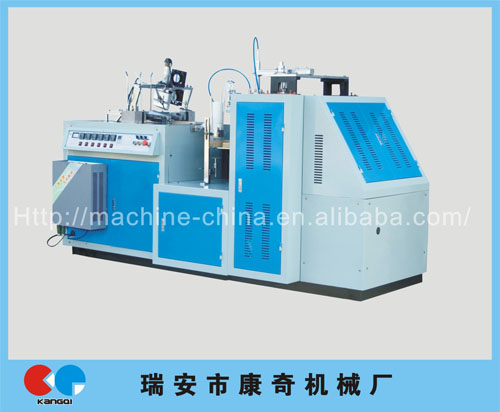

Product Name: BJ-A22 AUTOMATIC Ultrasonic Double PE Paper Cup Machine
Product Model: BJ-A22
Click Times: 1987 Times
Information:

Technical Specification:

Model

BJ-A22 AUTOMATIC Ultrasonic Double PE Paper Cup Machine

Paper Cup Size

16z-22oz (mold exchangeable)

Raw Material

One-side or two side PE (polyethylene) film coated / laminated paper

Suitable paper weight

140-350gsm

Rated Productivity

40-50 pcs/ minute

Power Source

220V/380V 50Hz or other required

Total Power

4.8KW

Total Weight

2000KG

Package Size

(L x W x H)

3000 x1300 x1900mm

Working Air Source

0.4Mpa, Air Out-put:0.6 m3/minute

Making Double PE coated paper cups, need to buy an air compressor


1) gear box is 125 type, which has three year warranty. other company using 100 type which easy have problem in one year.
2) Transducer brand: Huifeng (The largest supplier in china)
3) Two types of drop system. 1: normal type an incline horse.
2: Arm-and-hand systems which use arm to pick the cup drop in to plastic hole. It makes the drop cup 99.9999.
4) Some bearing import from out of china.
5) Contractor:Zhengtai brand (The biggest electric parts supplier in china)
6)Inside of the machine , using big size of chains
7)2800*1300*1800mm machine size, which is big and  much stability
8)Machine body material is SS
